Hardware Overview#
The OmniRing is a smart wearable platform that is able to communicate with computers and mobile devices using an onboard Bluetooth LE stack.

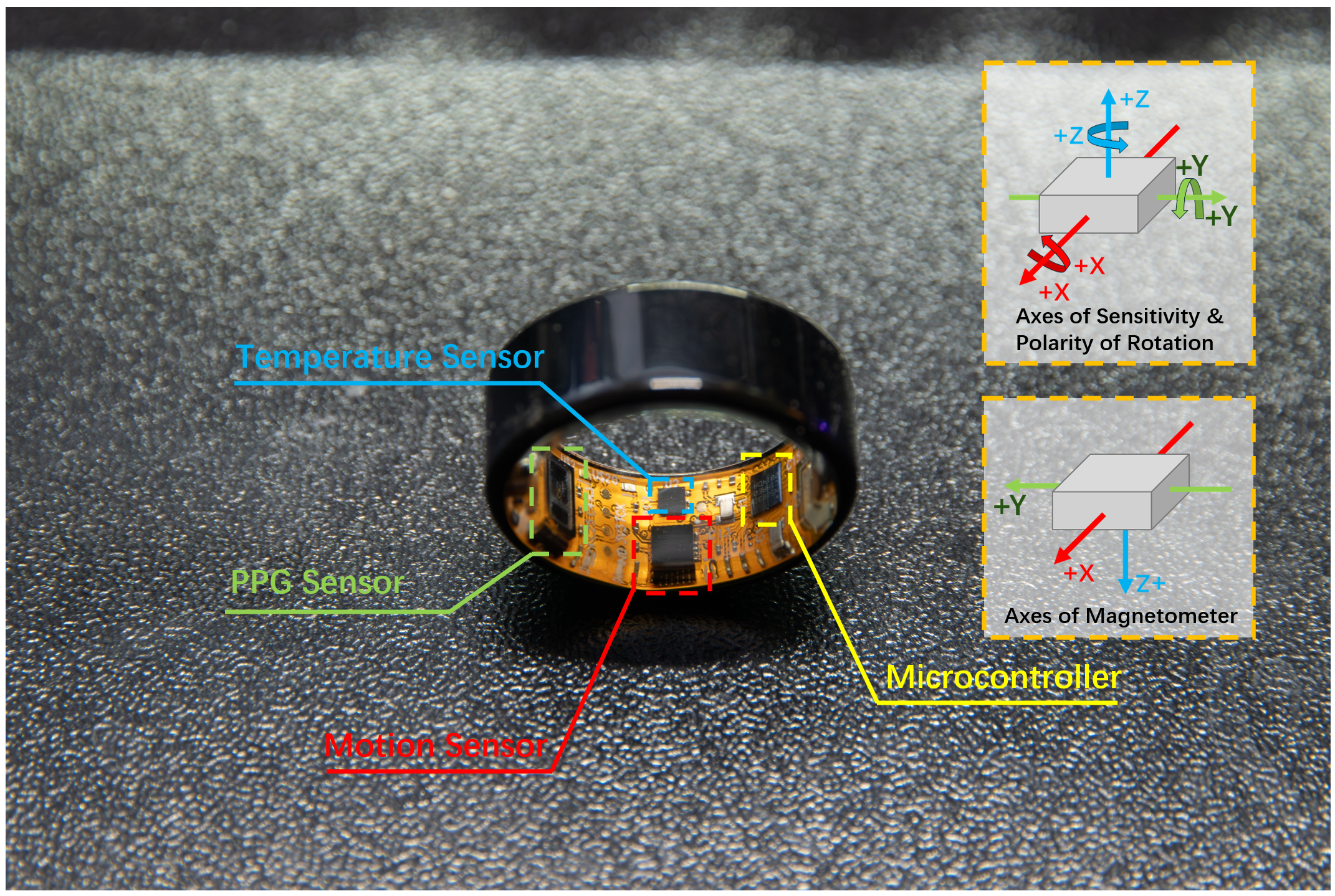

Hardware Overview#
Ring Sizes#
OmniRings are available in multiple sizes to ensure a comfortable fit for different users. The available sizes are:
Ring Size |
Inner Diameter (mm) |
Outer Diameter (mm) |
|---|---|---|
7 |
16.91 |
22.71 |
8 |
17.8 |
23.6 |
9 |
18.6 |
24.4 |
10 |
19.36 |
25.16 |
11 |
20.2 |
26.0 |
12 |
21.0 |
26.8 |
13 |
21.8 |
27.6 |
Hardware Usage#
To use the OmniRing for the first time, connect the ring to power with the included magnetic cord (or charging case) as shown in the figure below.

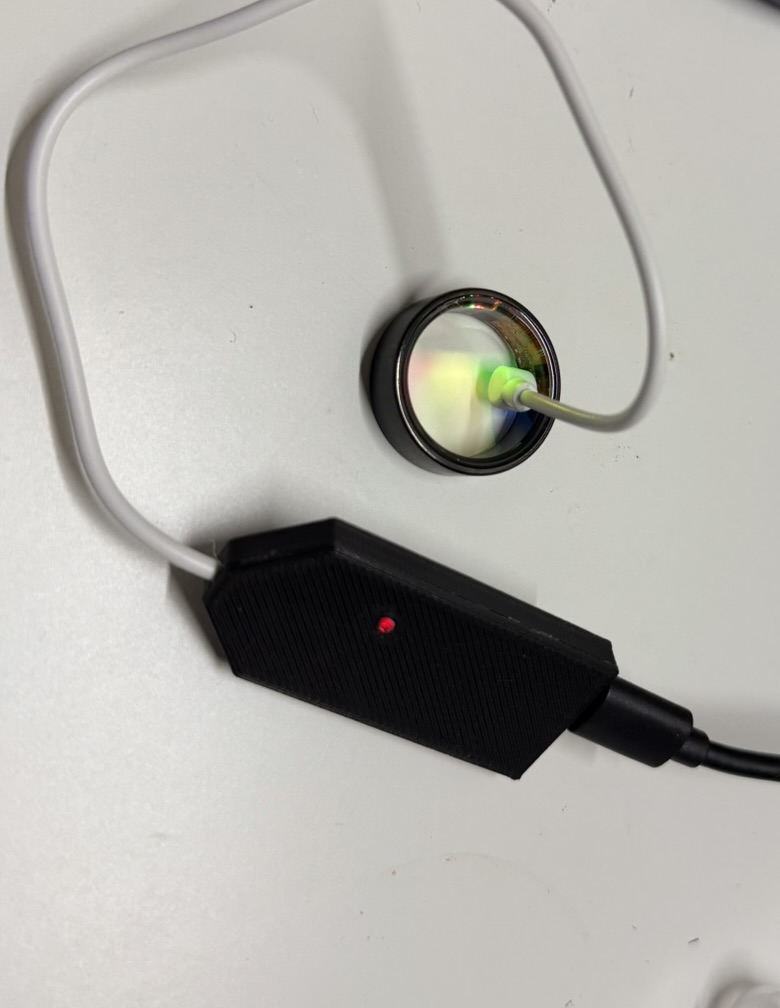

Ring and Charging Cable#
Note
The ring will automatically power on when connected to a charging source.
Status Indicators#
The OmniRing provides visual feedback through LED indicators:
Light Source Name |
Color |
Indication |
|---|---|---|
PPG Sensor (black block) |
Red / Green / IR |
PPG Sensor is ON |
Bluetooth LED (Inner) |
Flashing White |
BLE is waiting for a connection |
Bluetooth LED (Inner) |
Solid White |
BLE is connected |
Any LED |
No Light |
The battery is low |
