Charging Overview

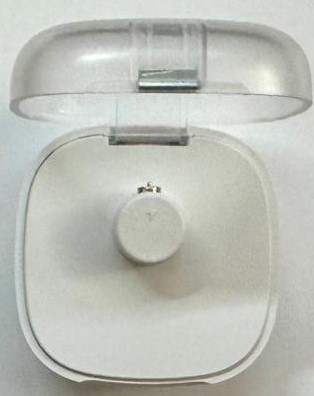

The OmniRing uses a charging case or a charging cord.

Charging Method 1 - Magnetic Cable

Charging Indicating LED on Charging Method 1 (left) and Charging Method 2 (right)

Charging LED Status

The LED light on the charging cord or case indicates the charging status:

• Red LED: The ring is being charged

• Blue LED: Weak connection or connection problems

Charging Procedures

Charging Method 1: Magnetic Charging Cable

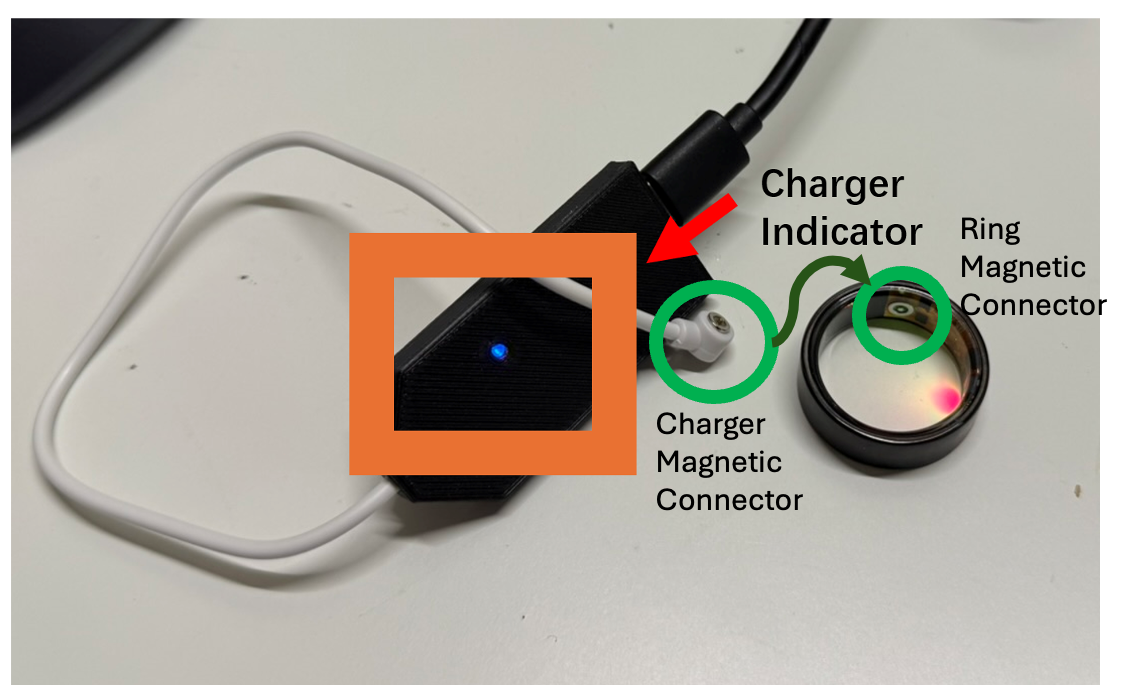

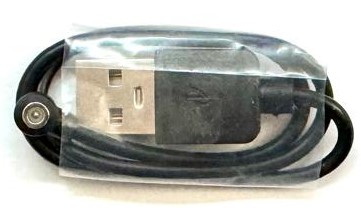

Charging cable with magnetic connection

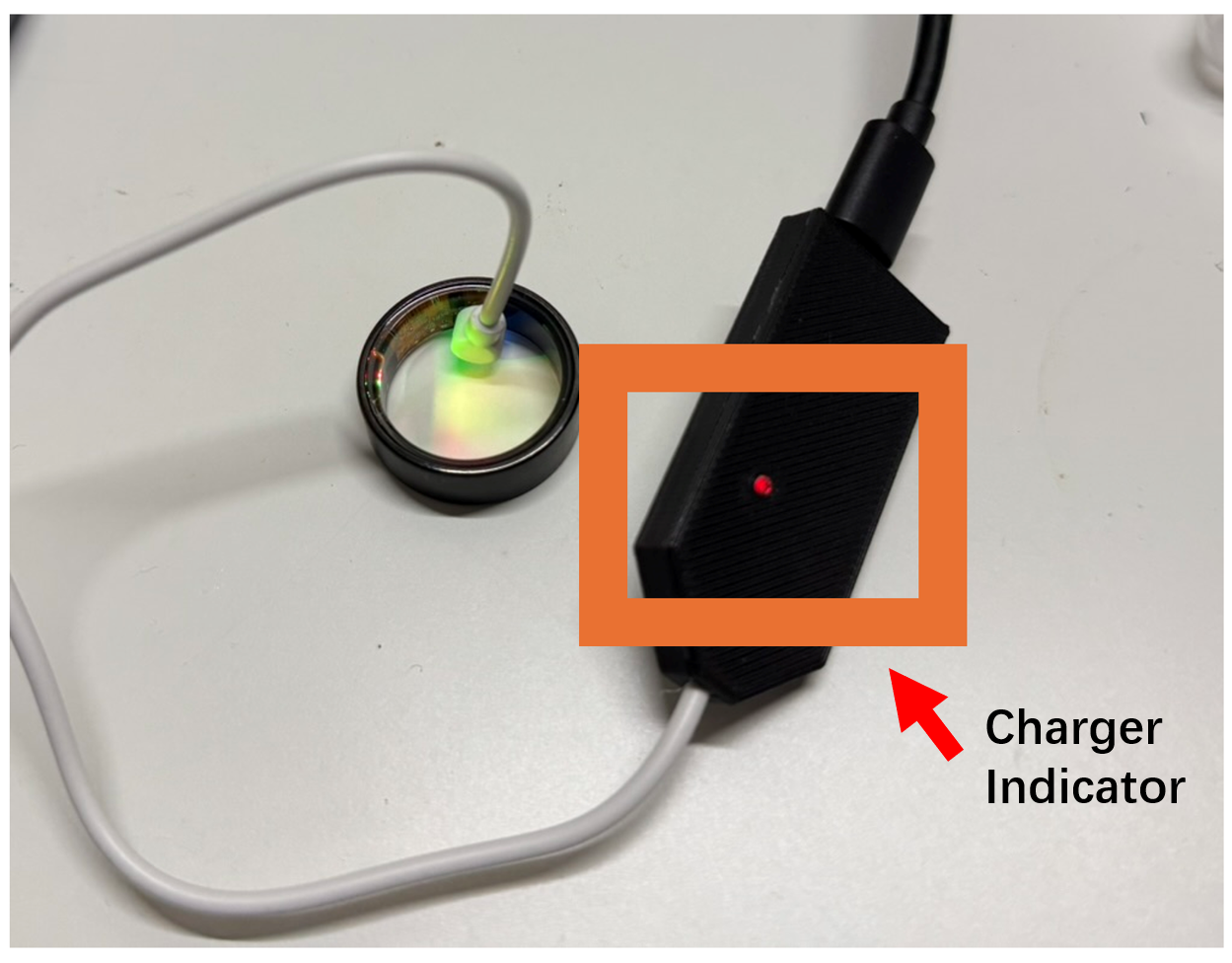

Charging Status LED

Power On

To charge the OmniRing:

1. Connect the magnetic charging cable to the ring, ensuring proper alignment with the charging pins

2. The magnet will secure the connection and initiate charging

3. Plug the charging cable into a USB-C power source, such as a battery bank or phone charger

4. Once charging starts, the LED light will indicate the charging status

Important

The charging time for the ring is approximately 1 hour and 30 minutes.

Power Off

OmniRing device

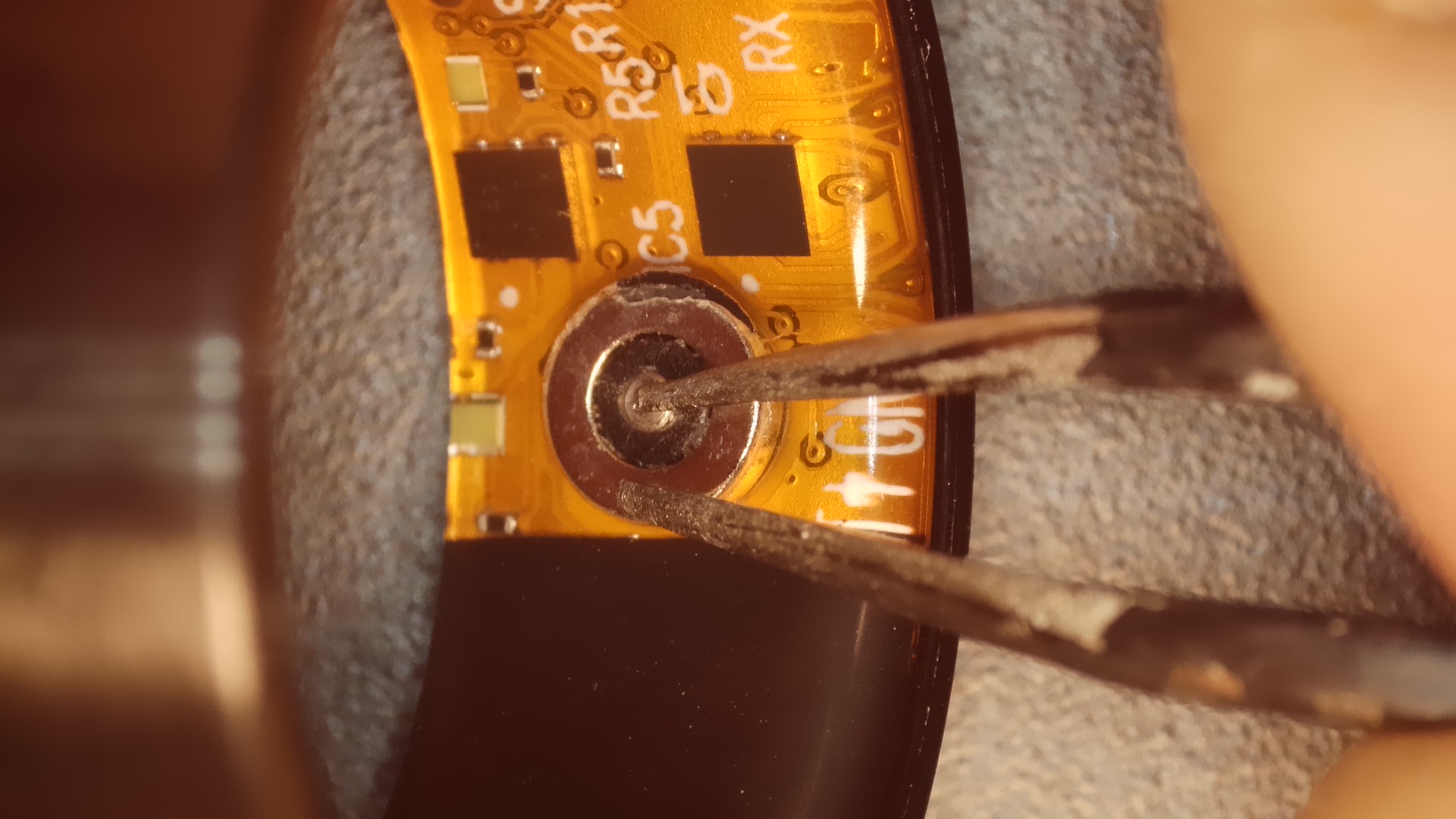

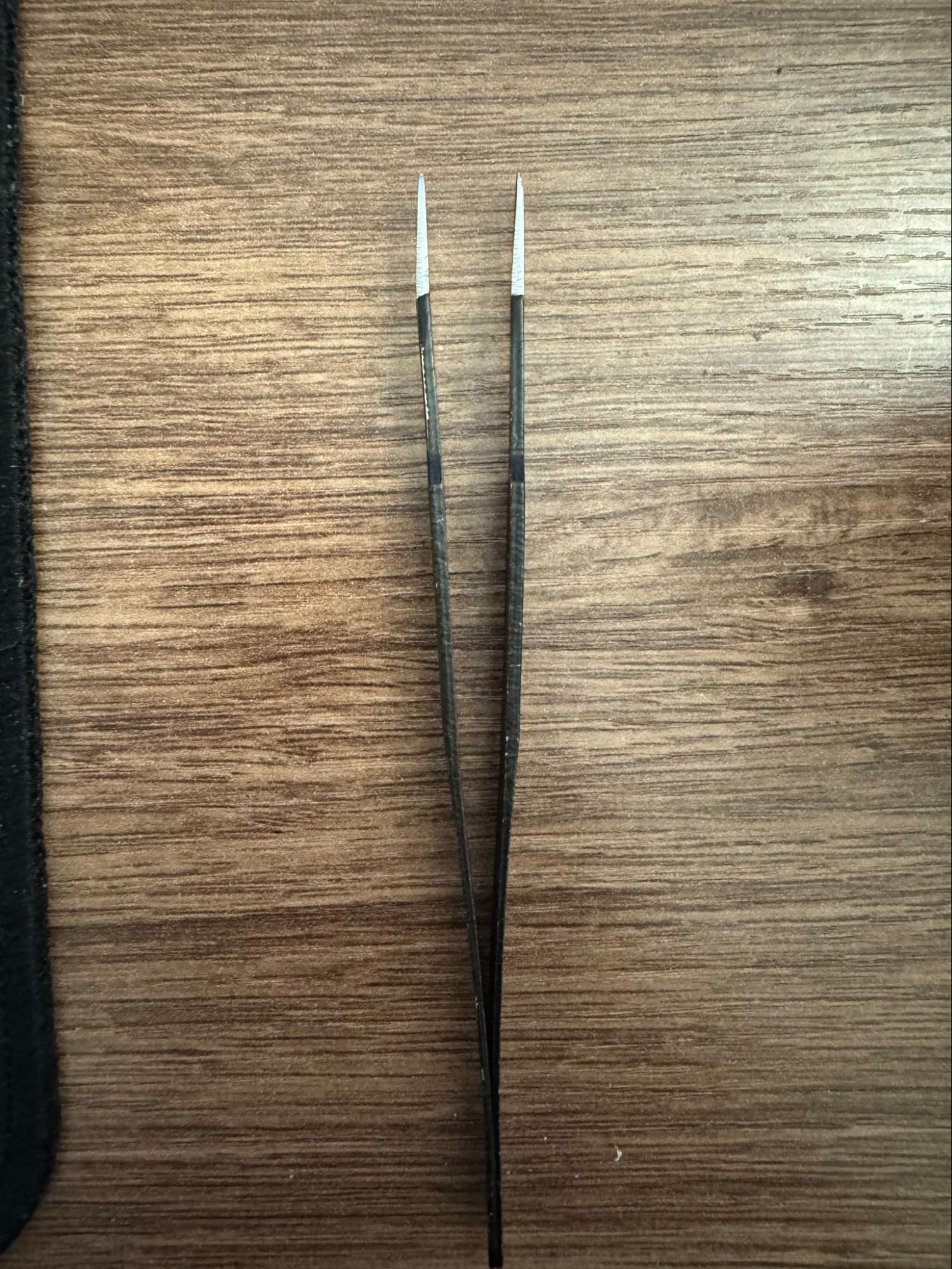

How to Power Off The Ring. OmniRing (left) and Tweezers (right)

To power off the ring:

1. Use tweezers to short the ring contacts

2. This will safely power down the device

Warning

Be careful when using tweezers near the ring contacts to avoid damage.

Charging Method 2: Charging Case

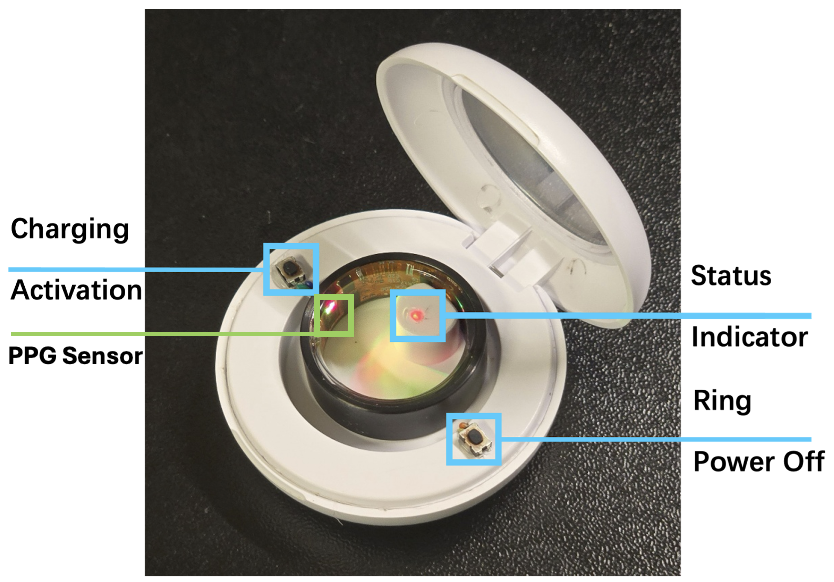

Charging Case with Button

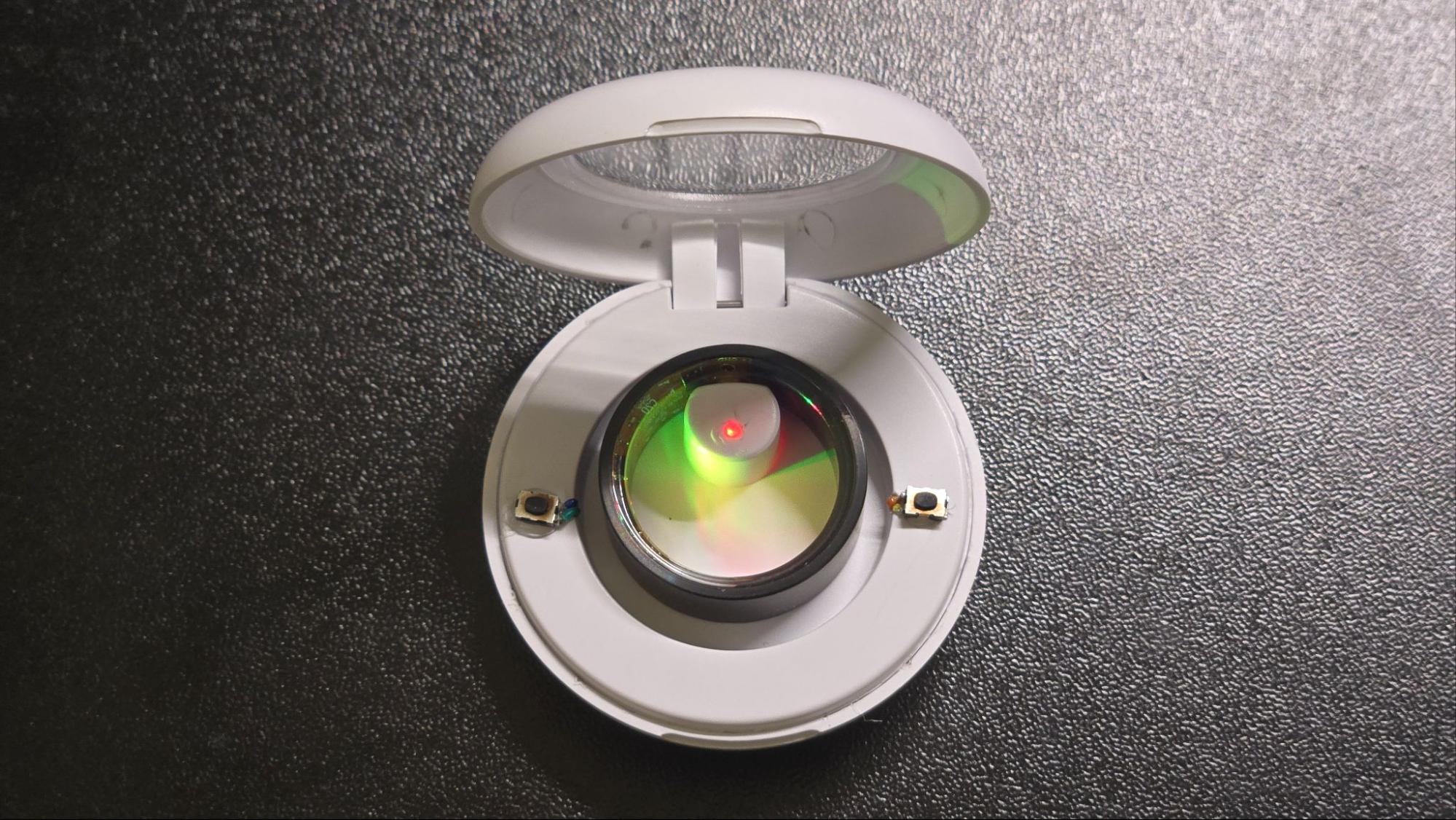

Placing the Ring into the Charging Box

• For a stable connection, the PPG sensor should be on the LEFT

Charging Process

1. Press the LEFT button (Charging Activation), the indicator (Status Indicator) should display red

2. Within 10 seconds of timeout, place the ring into the charging box

3. Wait another 10 seconds to check if the red indicator (Status Indicator) stays on

Power On

• Follow the instructions in the “Charging” section

• Ring will power on whenever external power is connected

Power Off

1. Remove the ring from the charging box

2. Wait until the red indicator goes out

3. Place the ring again into the charging case

4. Press the RIGHT button (Ring Power Off) shortly to shut down the ring
